244.xx.3.xxx.11 Spring- and spacer unit for compression spring, low installation space, with spacer sleeve
Description:

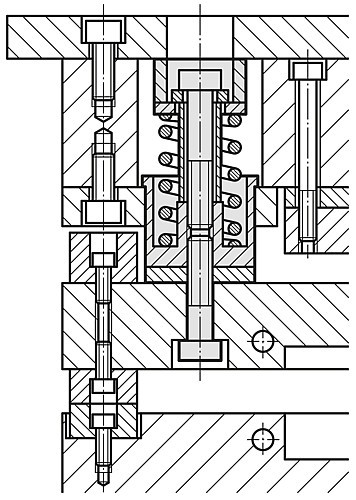

The preloaded combination spring- and spacer unit combines the functions of providing the spring force and of spacing the stripper in one constructional element, whilst conventional designs employed two
The preloaded combination spring- and spacer unit combines the functions of providing the spring force and of spacing the stripper in one constructional element, whilst conventional designs employed two
Products
Showing 1-10 of 32 items
| SKU | Spring diameter | H | |
|---|---|---|---|
| 244.20.3.027.11 | 20 mm | 27 | |
| 244.20.3.033.11 | 20 mm | 33 | |
| 244.20.3.038.11 | 20 mm | 38 | |
| 244.20.3.044.11 | 20 mm | 44 | |
| 244.20.3.048.11 | 20 mm | 48 | |
| 244.20.3.061.11 | 20 mm | 61 | |
| 244.20.3.072.11 | 20 mm | 72 | |
| 244.20.3.080.11 | 20 mm | 80 | |
| 244.25.3.027.11 | 25 mm | 27 | |
| 244.25.3.033.11 | 25 mm | 33 | |
| 244.25.3.038.11 | 25 mm | 38 | |
| 244.25.3.044.11 | 25 mm | 44 | |
| 244.25.3.048.11 | 25 mm | 48 | |
| 244.25.3.061.11 | 25 mm | 61 | |
| 244.25.3.072.11 | 25 mm | 72 | |
| 244.25.3.080.11 | 25 mm | 80 | |
| 244.32.3.027.11 | 32 mm | 27 | |
| 244.32.3.033.11 | 32 mm | 33 | |
| 244.32.3.038.11 | 32 mm | 38 | |
| 244.32.3.044.11 | 32 mm | 44 | |
| 244.32.3.048.11 | 32 mm | 48 | |
| 244.32.3.061.11 | 32 mm | 61 | |
| 244.32.3.072.11 | 32 mm | 72 | |
| 244.32.3.080.11 | 32 mm | 80 | |
| 244.40.3.027.11 | 40 mm | 27 | |
| 244.40.3.033.11 | 40 mm | 33 | |
| 244.40.3.038.11 | 40 mm | 38 | |
| 244.40.3.044.11 | 40 mm | 44 | |
| 244.40.3.048.11 | 40 mm | 48 | |
| 244.40.3.061.11 | 40 mm | 61 | |
| 244.40.3.072.11 | 40 mm | 72 | |
| 244.40.3.080.11 | 40 mm | 80 |
