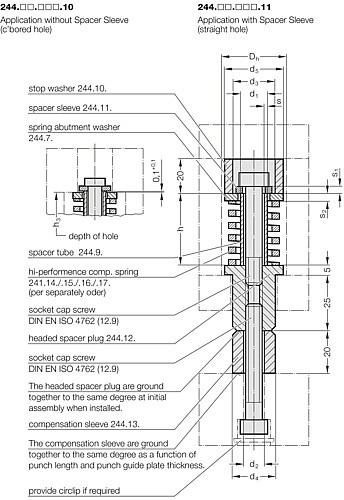

244.xx.xxx.11 Spring- and spacer unit for compression spring, with spacer sleeve
Description:

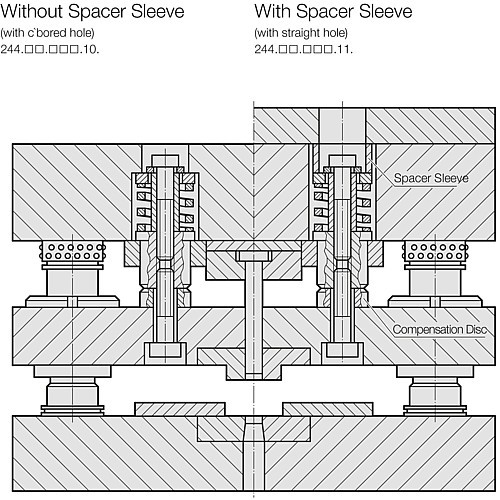

The preloaded combination spring- and spacer unit combines the functions of providing the spring force and of spacing the stripper in one constructional element, whilst conventional designs employed two
The preloaded combination spring- and spacer unit combines the functions of providing the spring force and of spacing the stripper in one constructional element, whilst conventional designs employed two
Products
Showing 1-10 of 32 items
| SKU | Spring diameter | H | |
|---|---|---|---|
| 244.20.027.11 | 20 mm | 27 | |
| 244.20.033.11 | 20 mm | 33 | |
| 244.20.038.11 | 20 mm | 38 | |
| 244.20.044.11 | 20 mm | 44 | |
| 244.20.048.11 | 20 mm | 48 | |
| 244.20.061.11 | 20 mm | 61 | |
| 244.20.072.11 | 20 mm | 72 | |
| 244.20.080.11 | 20 mm | 80 | |
| 244.25.027.11 | 25 mm | 27 | |
| 244.25.033.11 | 25 mm | 33 | |
| 244.25.038.11 | 25 mm | 38 | |
| 244.25.044.11 | 25 mm | 44 | |
| 244.25.048.11 | 25 mm | 48 | |
| 244.25.061.11 | 25 mm | 61 | |
| 244.25.072.11 | 25 mm | 72 | |
| 244.25.080.11 | 25 mm | 80 | |
| 244.32.027.11 | 32 mm | 27 | |
| 244.32.033.11 | 32 mm | 33 | |
| 244.32.038.11 | 32 mm | 38 | |
| 244.32.044.11 | 32 mm | 44 | |
| 244.32.048.11 | 32 mm | 48 | |
| 244.32.061.11 | 32 mm | 61 | |
| 244.32.072.11 | 32 mm | 72 | |
| 244.32.080.11 | 32 mm | 80 | |
| 244.40.027.11 | 40 mm | 27 | |
| 244.40.033.11 | 40 mm | 33 | |
| 244.40.038.11 | 40 mm | 38 | |
| 244.40.044.11 | 40 mm | 44 | |
| 244.40.048.11 | 40 mm | 48 | |
| 244.40.061.11 | 40 mm | 61 | |
| 244.40.072.11 | 40 mm | 72 | |
| 244.40.080.11 | 40 mm | 80 |
