2478.25.00090. Lifter unit with pillar guidance

2478.25.00090. Lifter unit with pillar guidance

Description:

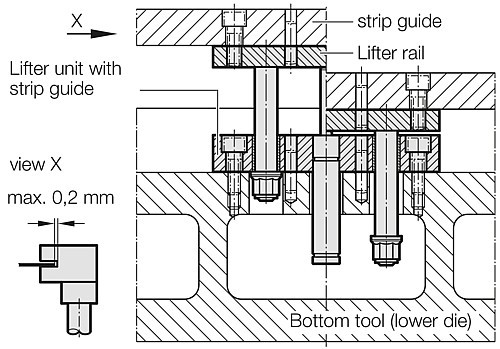

Filling pressure regulation and a composite arrangement are possible using the cylinder tube base. To attach the strip guide on the lifter rail, use the provided threads. We recommend designing the stri
SKU: 2478-25-00090-
Order No
Max. stroke
SA
Height
Base plate length
160 mm Reset
Cross member length

Products

Showing 1-10 of 8 items

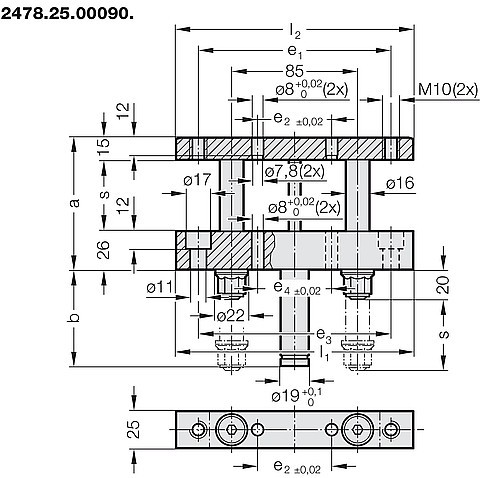

SKU Max. stroke SA Height Base plate length Cross member length
2478.25.00090.025 23 mm 24 64 mm 160 mm 115 mm
2478.25.00090.038 36 mm 37 77 mm 160 mm 160 mm
2478.25.00090.050 48 mm 49 89 mm 160 mm 160 mm
2478.25.00090.063 61.5 mm 62 102.5 mm 160 mm 160 mm
2478.25.00090.080 78 mm 79 119 mm 160 mm 160 mm
2478.25.00090.100 98 mm 99 139 mm 160 mm 160 mm
2478.25.00090.125 123 mm 124 164 mm 160 mm 160 mm
2478.25.00090.150 148 mm 149 189 mm 160 mm 160 mm
