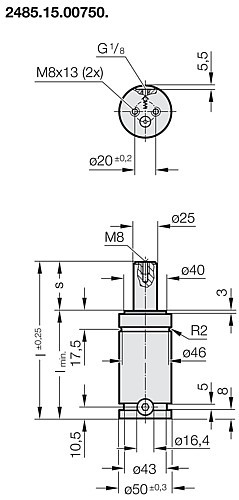

2485.15.00750. Gas spring with low build height

2485.15.00750. Gas spring with low build height

Note:

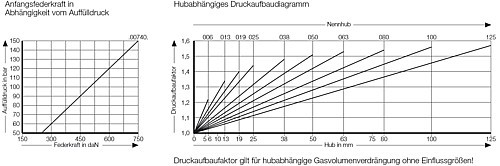

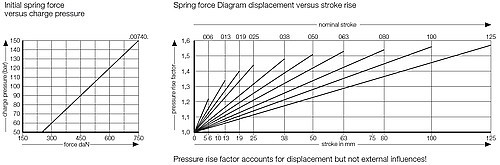

Initial spring force at 150 bar = 740 daN

Order No for spare parts kit: 2485.15.00750
(Stroke length 6 and 13 not repairable)

Gas spring without valve
Order No (example): 2485.1
SKU: 2485-15-00750-
Order No
Design
Spring force start
740 daN Reset
Max. stroke

Products

Showing 1-10 of 20 items
SKU Design Spring force start Max. stroke
2485.15.00750.006 with valve 740 daN 6 mm
2485.15.00750.013 with valve 740 daN 13 mm
2485.15.00750.019 with valve 740 daN 19 mm
2485.15.00750.025 with valve 740 daN 25 mm
2485.15.00750.038 with valve 740 daN 38 mm
2485.15.00750.050 with valve 740 daN 50 mm
2485.15.00750.063 with valve 740 daN 63 mm
2485.15.00750.080 with valve 740 daN 80 mm
2485.15.00750.100 with valve 740 daN 100 mm
2485.15.00750.125 with valve 740 daN 125 mm
2485.15.00750.006.P without valve 740 daN 6 mm
2485.15.00750.013.P without valve 740 daN 13 mm
2485.15.00750.019.P without valve 740 daN 19 mm
2485.15.00750.025.P without valve 740 daN 25 mm
2485.15.00750.038.P without valve 740 daN 38 mm
2485.15.00750.050.P without valve 740 daN 50 mm
2485.15.00750.063.P without valve 740 daN 63 mm
2485.15.00750.080.P without valve 740 daN 80 mm
2485.15.00750.100.P without valve 740 daN 100 mm
2485.15.00750.125.P without valve 740 daN 125 mm
