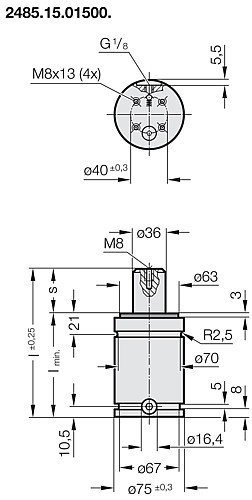

2485.15.01500. Gas spring with low build height

2485.15.01500. Gas spring with low build height

Note:

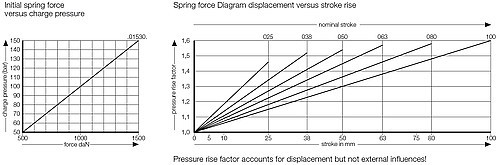

Initial spring force at 150 bar = 1530 daN

Order No for spare parts kit: 2485.15.01500

Gas spring without valve
Order No (example): 2485.15.01500. .P

Pressure medium: Nitr
SKU: 2485-15-01500-
Order No
Spring force start
1530 daN Reset
Max. stroke
Design
without valve Reset
Spring force start
1530 daN Reset
Max. stroke

Products

Showing 1-10 of 12 items
SKU Spring force start Max. stroke Design Spring force start Max. stroke
2485.15.01500.025 1530 daN 25 mm - - -
2485.15.01500.038 1530 daN 38 mm - - -
2485.15.01500.050 1530 daN 50 mm - - -
2485.15.01500.063 1530 daN 63 mm - - -
2485.15.01500.080 1530 daN 80 mm - - -
2485.15.01500.100 1530 daN 100 mm - - -
2485.15.01500.025.P - - without valve 1530 daN 25 mm
2485.15.01500.038.P - - without valve 1530 daN 38 mm
2485.15.01500.050.P - - without valve 1530 daN 50 mm
2485.15.01500.063.P - - without valve 1530 daN 63 mm
2485.15.01500.080.P - - without valve 1530 daN 80 mm
2485.15.01500.100.P - - without valve 1530 daN 100 mm
