2490.14.01000. Gas spring Compact

2490.14.01000. Gas spring Compact

Note:

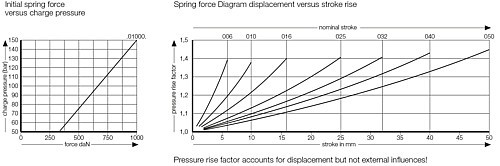

Initial spring force at 150 bar = 1000 daN

Order No for spare parts kit: 2490.14.01000

Gas spring without valve
Order No (example): 2490.14.01000. .P

When mounting to floo
SKU: 2490-14-01000-
Order No
Design
Spring force start
1000 daN Reset
HUBMAX
Cylinder pipe diameter
38 mm Reset
Piston rod diameter
20 mm Reset
Length

Products

Showing 1-10 of 14 items
SKU Design Spring force start HUBMAX Cylinder pipe diameter Piston rod diameter Length
2490.14.01000.006 with valve 1000 daN 6 mm 38 mm 20 mm 61 mm
2490.14.01000.006.P without valve 1000 daN 6 mm 38 mm 20 mm 61 mm
2490.14.01000.010 with valve 1000 daN 10 mm 38 mm 20 mm 78 mm
2490.14.01000.010.P without valve 1000 daN 10 mm 38 mm 20 mm 78 mm
2490.14.01000.016 with valve 1000 daN 16 mm 38 mm 20 mm 100 mm
2490.14.01000.016.P without valve 1000 daN 16 mm 38 mm 20 mm 100 mm
2490.14.01000.025 with valve 1000 daN 25 mm 38 mm 20 mm 135 mm
2490.14.01000.025.P without valve 1000 daN 25 mm 38 mm 20 mm 135 mm
2490.14.01000.032 with valve 1000 daN 32 mm 38 mm 20 mm 167 mm
2490.14.01000.032.P without valve 1000 daN 32 mm 38 mm 20 mm 167 mm
2490.14.01000.040 with valve 1000 daN 40 mm 38 mm 20 mm 195 mm
2490.14.01000.040.P without valve 1000 daN 40 mm 38 mm 20 mm 195 mm
2490.14.01000.050 with valve 1000 daN 50 mm 38 mm 20 mm 230 mm
2490.14.01000.050.P without valve 1000 daN 50 mm 38 mm 20 mm 230 mm
